SKU: WAC-06 Categories: , , Tag: Brand:

Wacom Cintiq Pro

Availability: Out of stock

฿56,500฿124,000


  • จอแสดงผลปากกาสร้างสรรค์ระบบสัมผัส
  •  Wacom Pro Pen 2 เพื่อความแม่นยำสูง
  • ตรวจจับการเอียงและการตอบสนองต่อแรงกด 8,192 ระดับ
  • ความละเอียด : 5080 lpi
  • จอภาพความละเอียดสูง IPS UHD
  • สีที่สามารถแสดงผลได้ (สูงสุด) : 1.07 พันล้านสี (สี 10 บิต)
  • ช่วงสี : 98% Adobe RGB
  • อัตรากว้างยาว : 16:9

Share it:
Compare

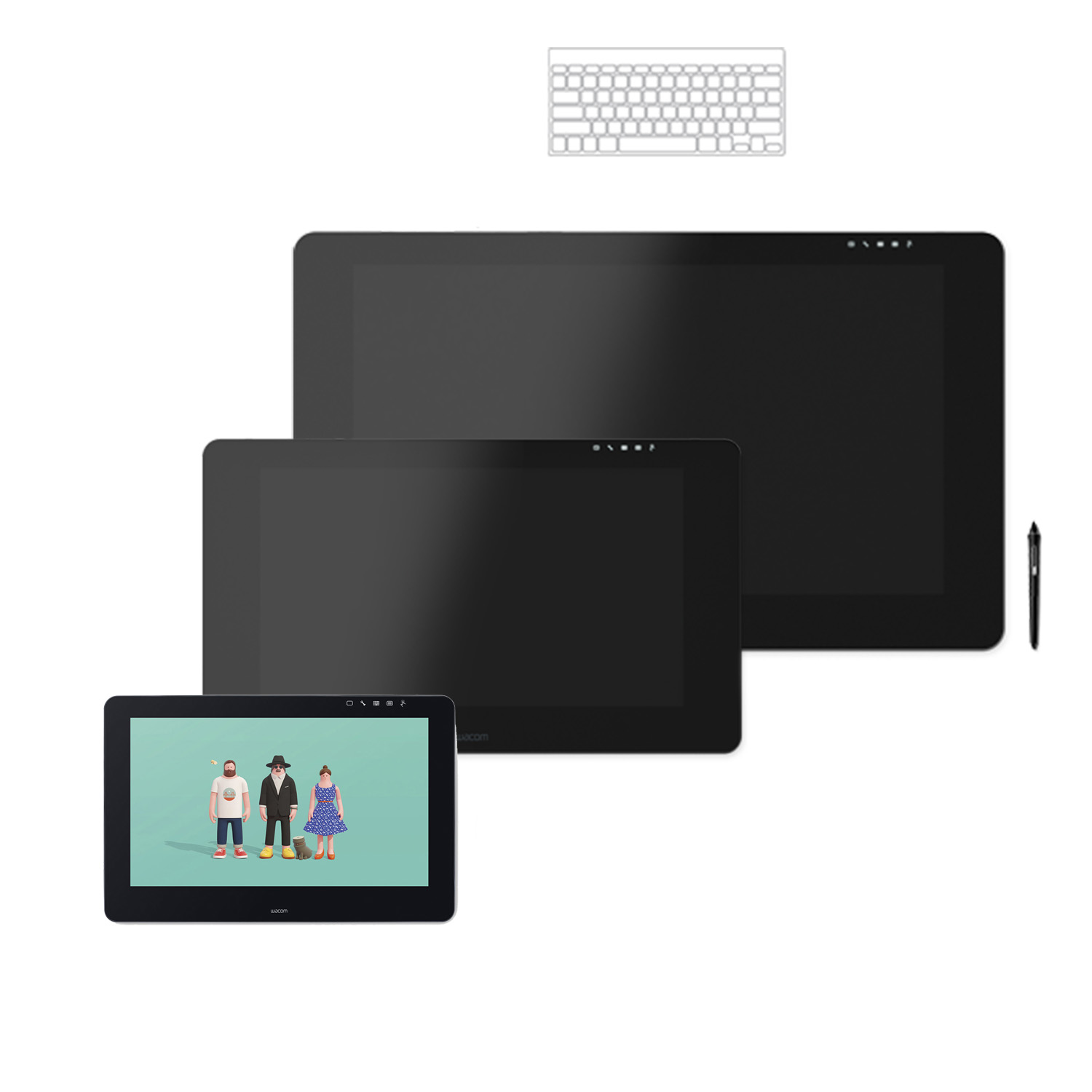

Wacom Cintiq Pro16 Pen & Touch



Wacom Cintiq Pro 24 Pen & Touch



Wacom Cintiq Pro 32 Pen & Touch



Specification

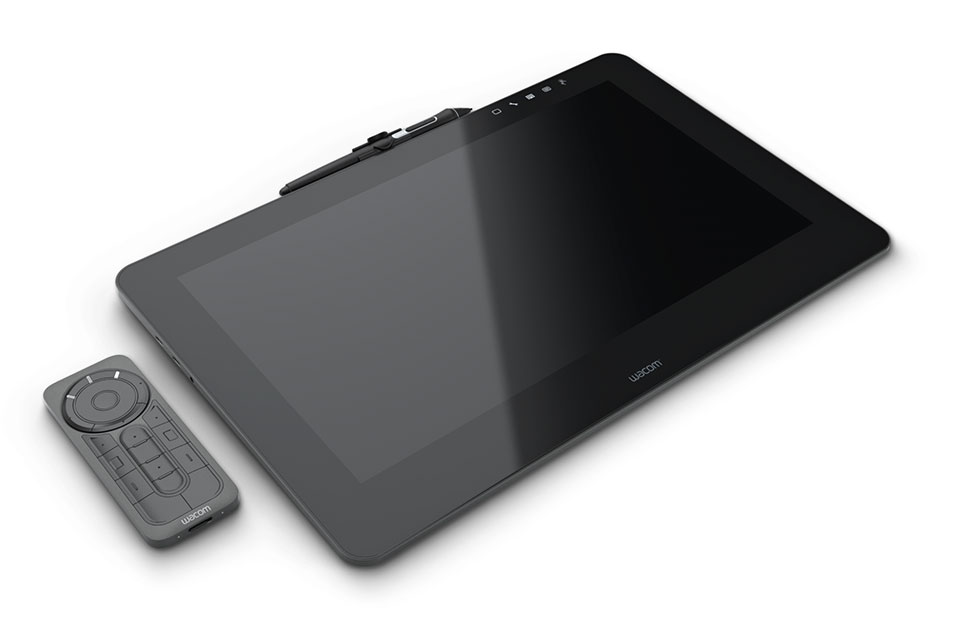

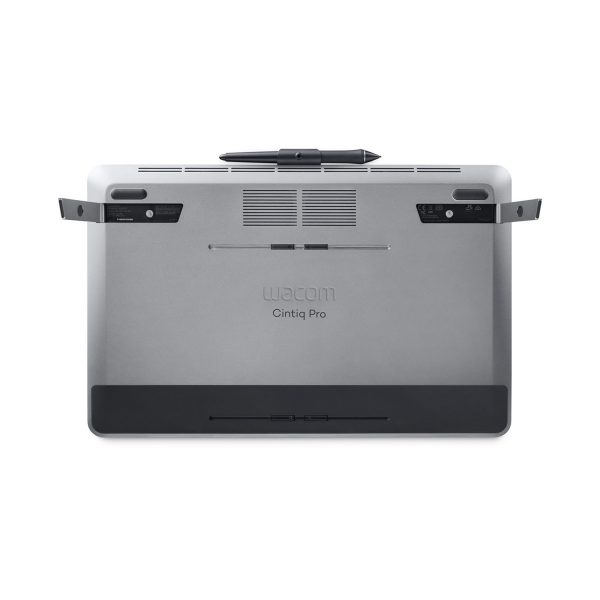

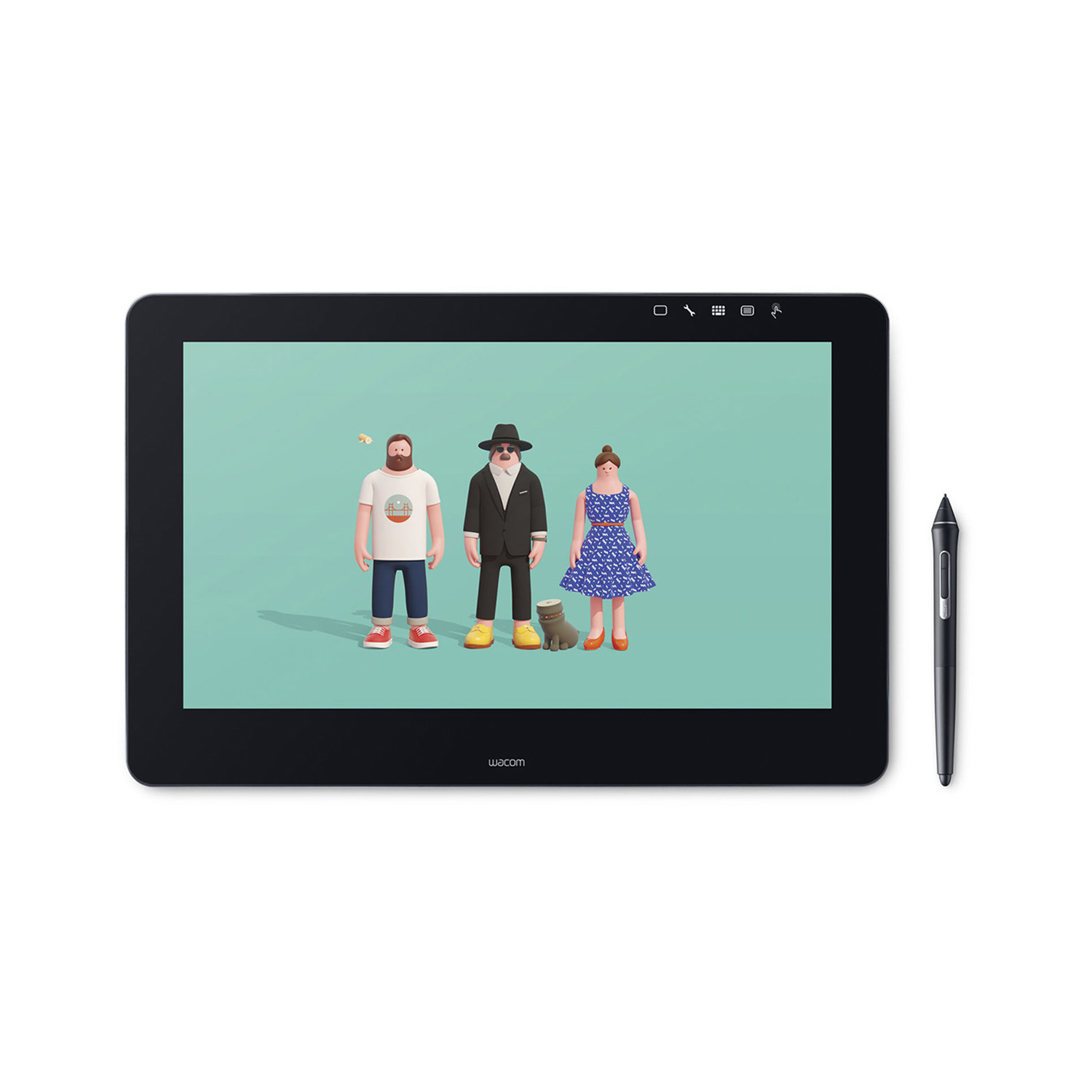

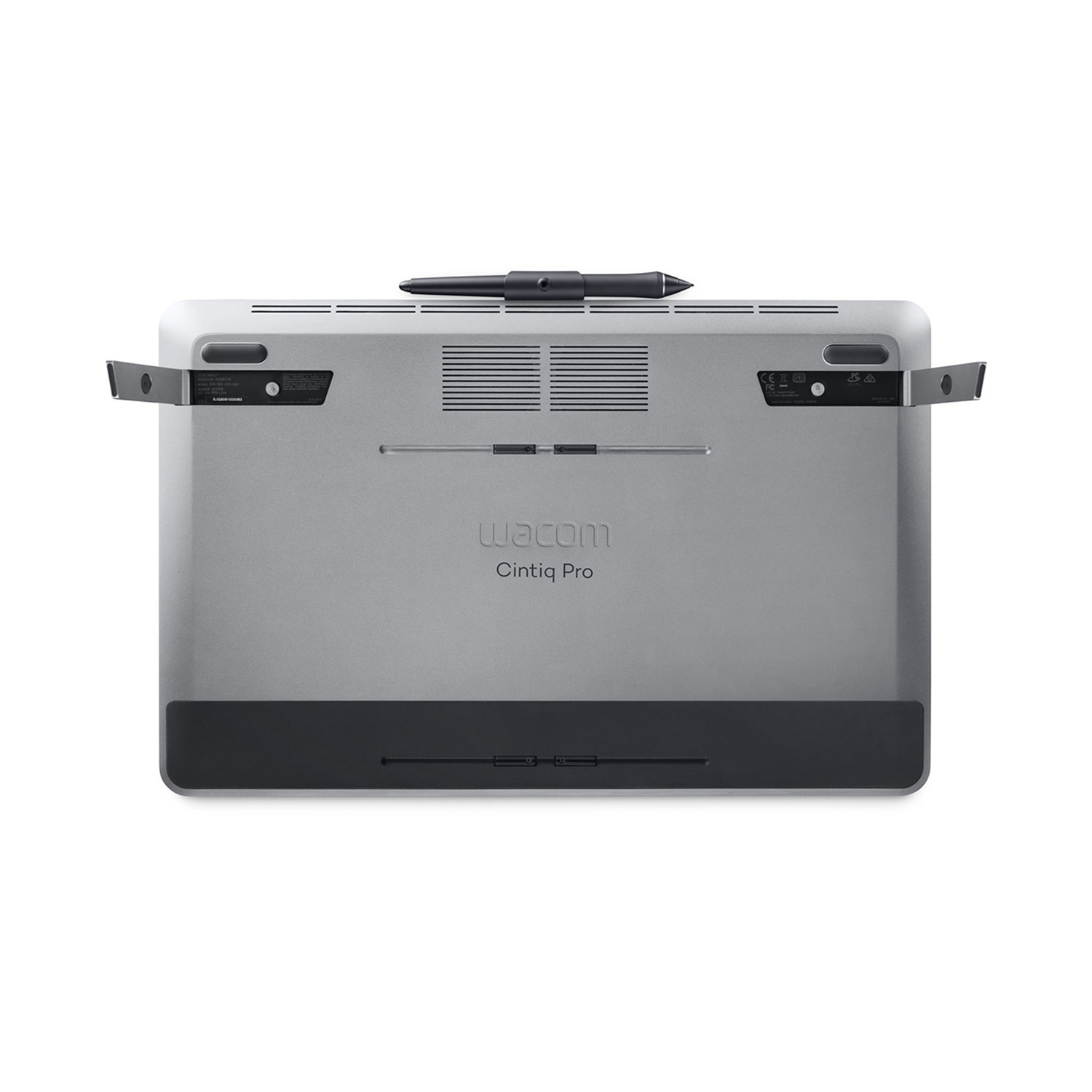

Wacom Cintiq Pro 16

  • Product typeCreative Pen Display 16
  • Size410 x 265 x 17.5 mm (16.2 x 10.4 x .7in)
  • Weight1.5 kg (3.3 lbs) without optional stand
  • Screen Size (Measured Diagonally)39.6 cm / 15.6 in
  • TechnologyIPS UHD high brightness panel
  • Displayable colors (maximum)16.7 million
  • Aspect ratio16:9
  • Viewing Angle176° (88°/88°) H, (88°/88°) V
  • Contrast ratio1000:1
  • Brightness250 cd/m2
  • Response25ms
  • Active area345 x 194 mm (13.6 x 7.6 in)
  • Color GamutAdobe RGB at CIE1931
    Coverage Ratio: 85%
    Area Ratio: 94%
    Adobe RGB at CIE1976
    Coverage Ratio: 90%
    Area Ratio: 94%
  • Industry Standard Pre-sets6500° K whitepoint default
  • Graphics InputUSB-C (DisplayPort Alt Mode), or Mini DisplayPort (for up to 3840 x 2160 resolution), or HDMI* (for up to 2560 x 1440 resolution) using included Wacom Link Plus.
    *High speed HDMI cable (up to 3 meter) sold separately.
  • Multi-TouchYes

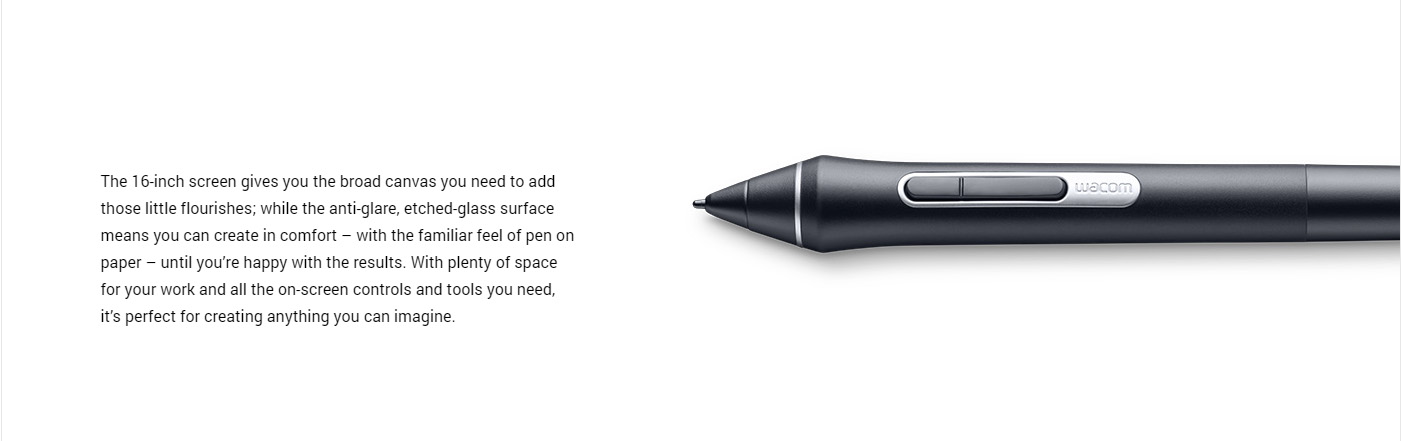

  • PenWacom Pro Pen 2
  • Pen pressure levels8192, both pen tip and eraser
  • Tilt Range60 degrees
  • Tilt recognition±60 levels
  • TypePressure-sensitive, cordless, battery-free
  • SwitchesTip switch, 2 side switches, eraser
  • Nibs10 (6 standard, 4 felt)
  • Pen Box/HolderYes – Pen Holder
  • Pen StandYes
  • GripLatex-free silicone rubber
  • TechnologyPatented electromagnetic resonance method
  • Resolution5080 lpi
  • ExpressKeys™17 customizable, application-specific on optional ExpressKey™ Remote
  • Touch RingYes – on optional ExpressKey Remote
  • Touch StripsNo
  • Rocker Ring And Home ButtonYes – on optional ExpressKey Remote
  • Radial MenuYes
  • Precision ModeYes – on optional ExpressKey Remote
  • Display toggleYes – on optional ExpressKey Remote
  • Dedicated pan, scroll, zoom, brush sizeYes – on optional ExpressKey Remote

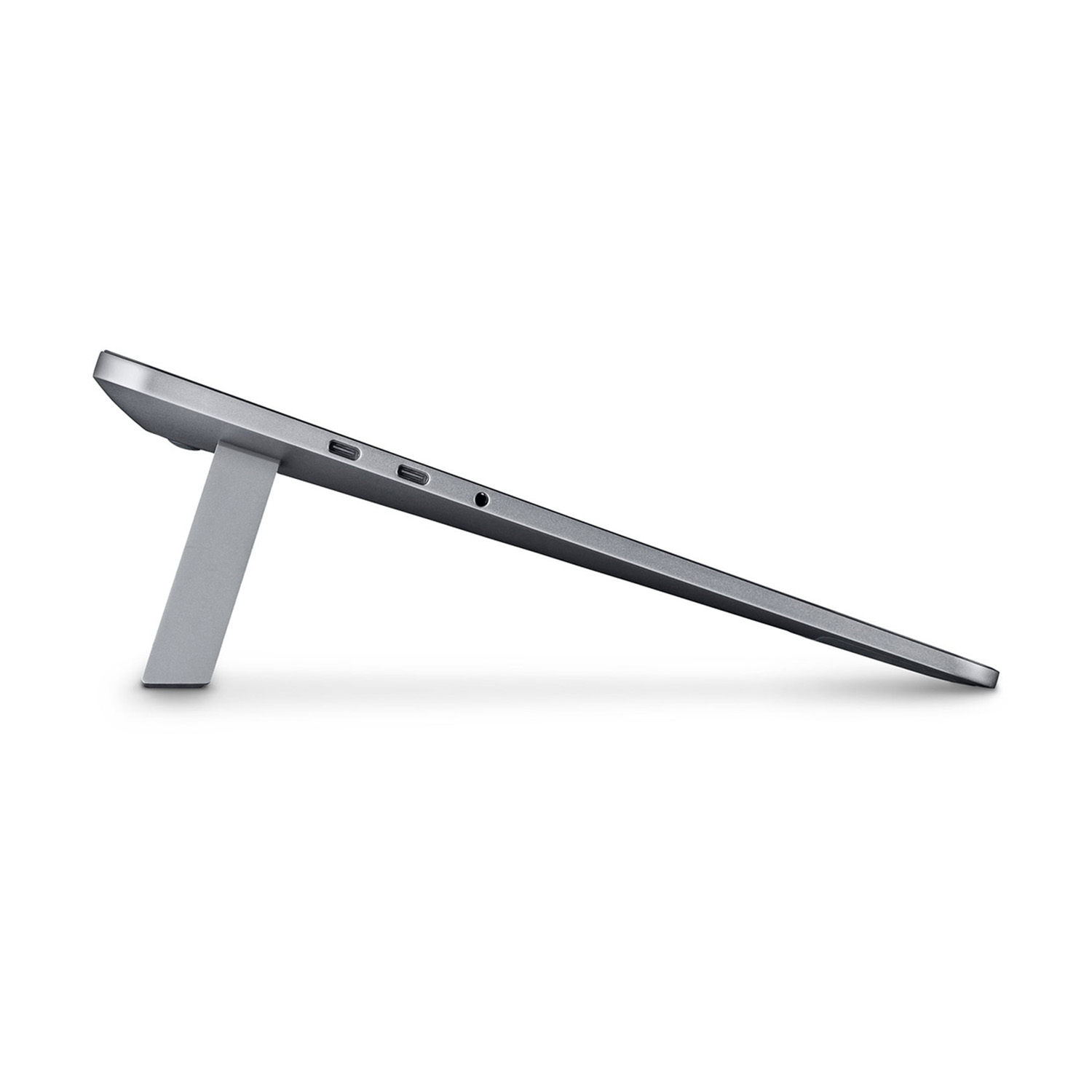

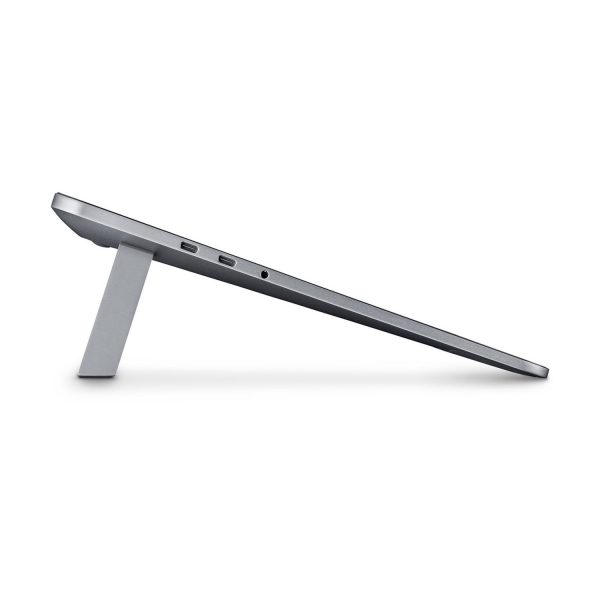

  • Stand AdjustabilityIntegrated pop-out legs for 20° angle
  • OrientationRight or left-handed use
  • Cables includedWacom Link Plus adapter with USB-C, Mini DisplayPort and USB cables & Power cable. High speed HDMI cable (up to 3 meter) sold separately
  • PC And Mac ConnectionUSB-C port supporting DisplayPort Alternate Mode (for up to 3840×2160 resolution); with Wacom Link Plus: Mini DisplayPort and standard USB Type-A port (for up to 3840 x 2160 resolution); or HDMI port, USB-A port and high speed HDMI cable (up to 3 meter, 1 meter recommended) for HDMI connectivity up to 2560 x 1440 resolution; up to 1 meter Mini DisplayPort to DisplayPort cable for DisplayPort connectivity.
    *When using Wacom Link Plus dongle, USB port will run with USB 2.0 speed in order to accommodate signal channel available for 4K/UHD video.
  • Ports included3 x USB C ports
  • AudioAudio headset jack included.
  • Power Supply Output20 VDC, 2.25 A (max)
  • Power Supply Input100 to 240 VAC, 50/60Hz
  • Power ConsumptionMax. Power Consumption: 33 W, 3 W or less when asleep 0.5W or less in sleep mode (USB non-connected) or OFF mode.
  • SecurityKensington® MiniSaver™ Mobile Lock Slot (lock purchased separately)
  • System requirementsPC: Windows® 7 or later, Mac: OS X® 10.11 or later USB-C port supporting DisplayPort Alternate Mode (for up to 3840×2160 resolution); or Mini DisplayPort and standard USB Type-A port (for up to 3840 x 2160 resolution); or HDMI port, USB-A port and high speed HDMI cable (up to 3 meter, 1 meter recommended) for HDMI connectivity up to 2560 x 1440 resolution; up to 1 meter Mini DisplayPort to DisplayPort cable for DisplayPort connectivity; internet access.

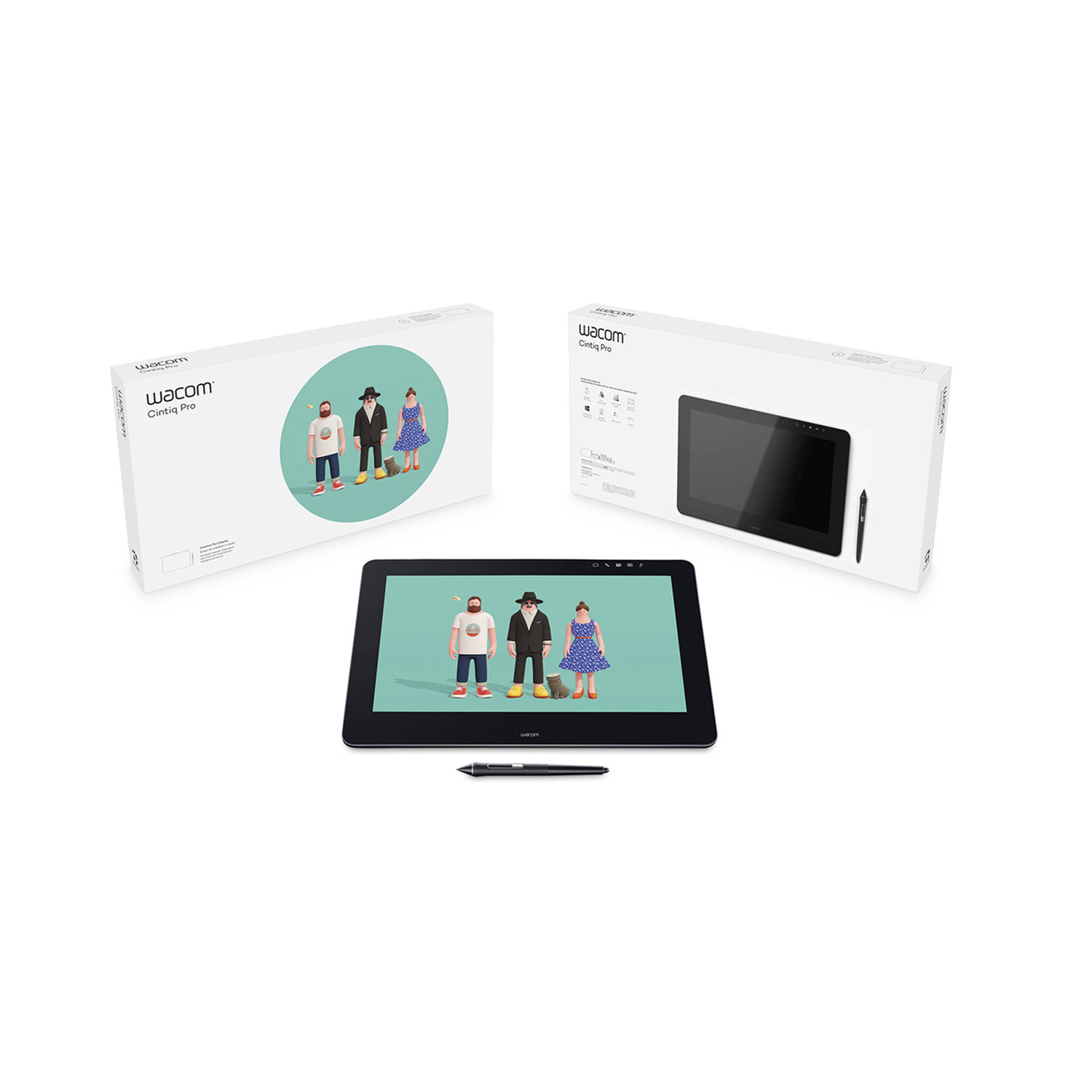

  • What’s includedWacom Cintiq Pro 16
    Wacom Pro Pen 2 with 4-color pen ring set Pen stand with 10 replacement nibs(6 standard, 4 felt) and nib removal tool
    Pen Holder
    AC adaptor
    Power cable
    Wacom Link Plus with Micro-USB, Mini-DisplayPort, HDMI port and 2 USB-C ports & cables (USB-C to USB-C, Mini-DisplayPort to Mini-DisplayPort, USB-A to Micro-USB)
    Quick Start Guide
    Regulation sheet
    Cleaning cloth
  • CertificationsVCCI Class B, FCC Part 15 Subpart B (class B) and C, CE, IC ICES-003 and 210, RCM, KCC, BSMI, C-tick, CB, CCC, GOST-R, China RoHS, Korean RoHS, EU RoHS
  • Additional accessoriesExpressKey™ Remote, Wacom Stand, Wacom Soft Case, Wireless Bluetooth® Keyboard, Prior generation pens (Pro, Classic, Art, Airbrush, Grip)
  • Model numberDTH-1620
  • Limited warranty2 years in USA, Canada, and Latin America
    3 years in Europe, Africa, China, and Middle East
    1 year in Japan & Asia Pacific
  • Specification numbers like display size, active area and weight are approximate. Specifications are subject to change.

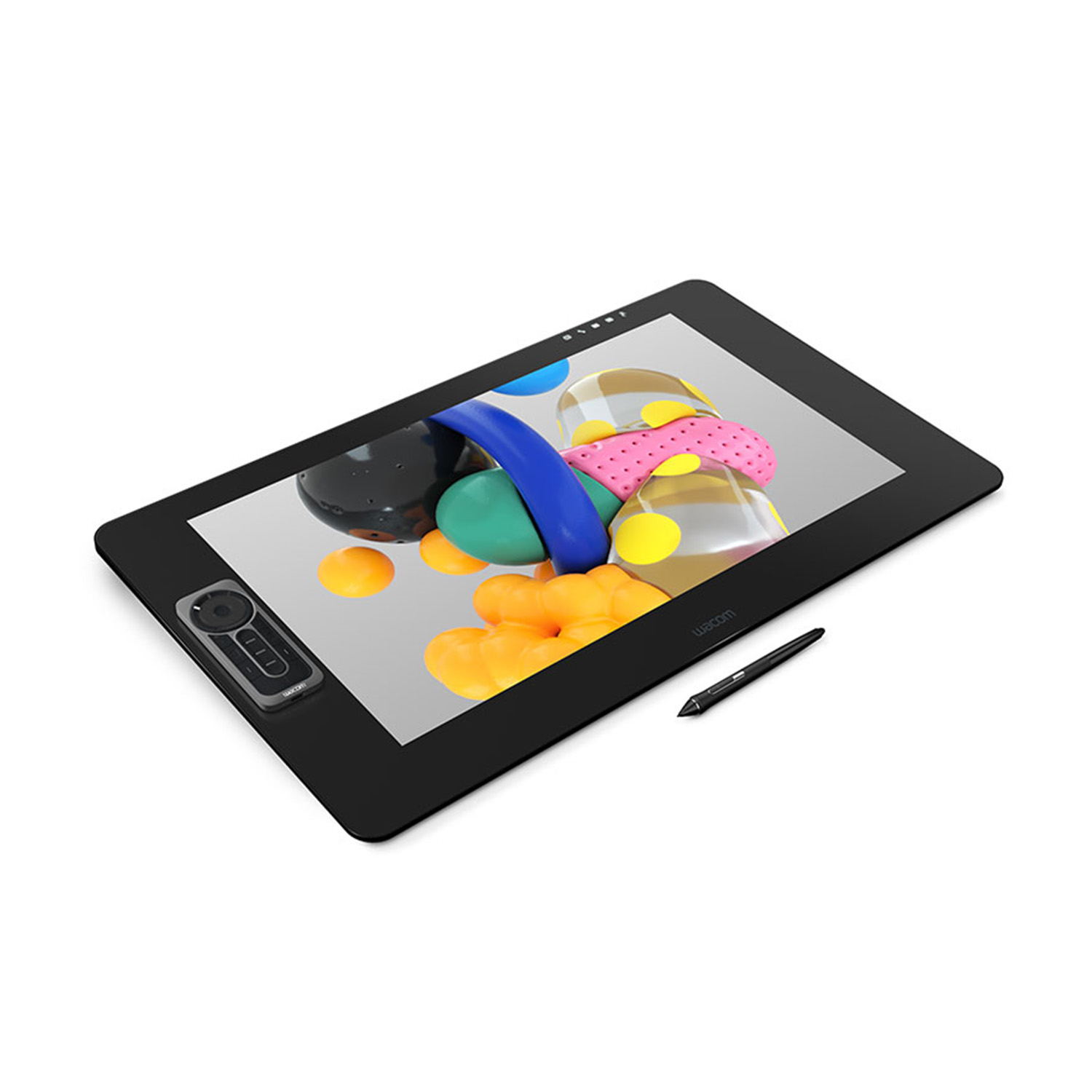

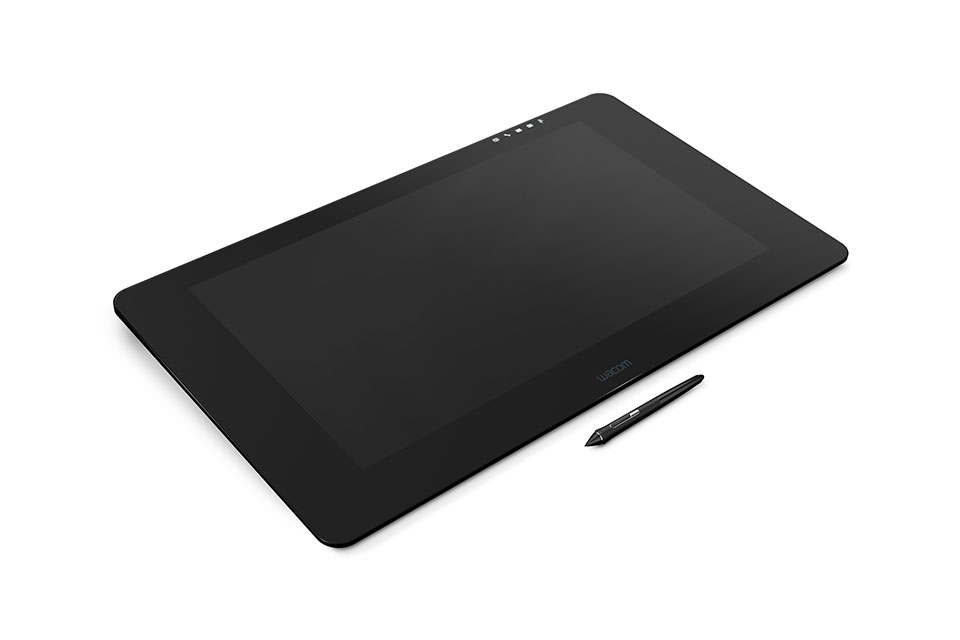

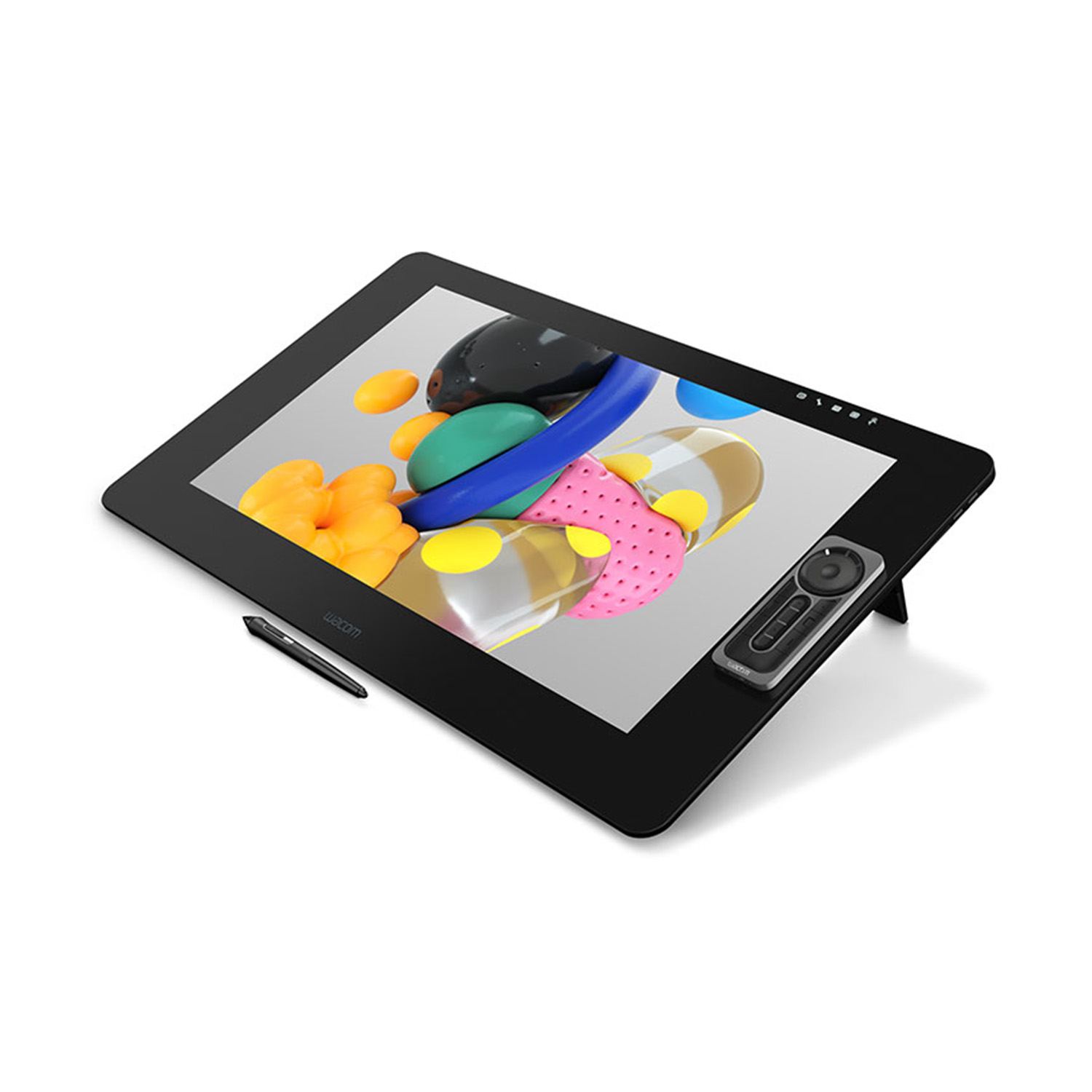

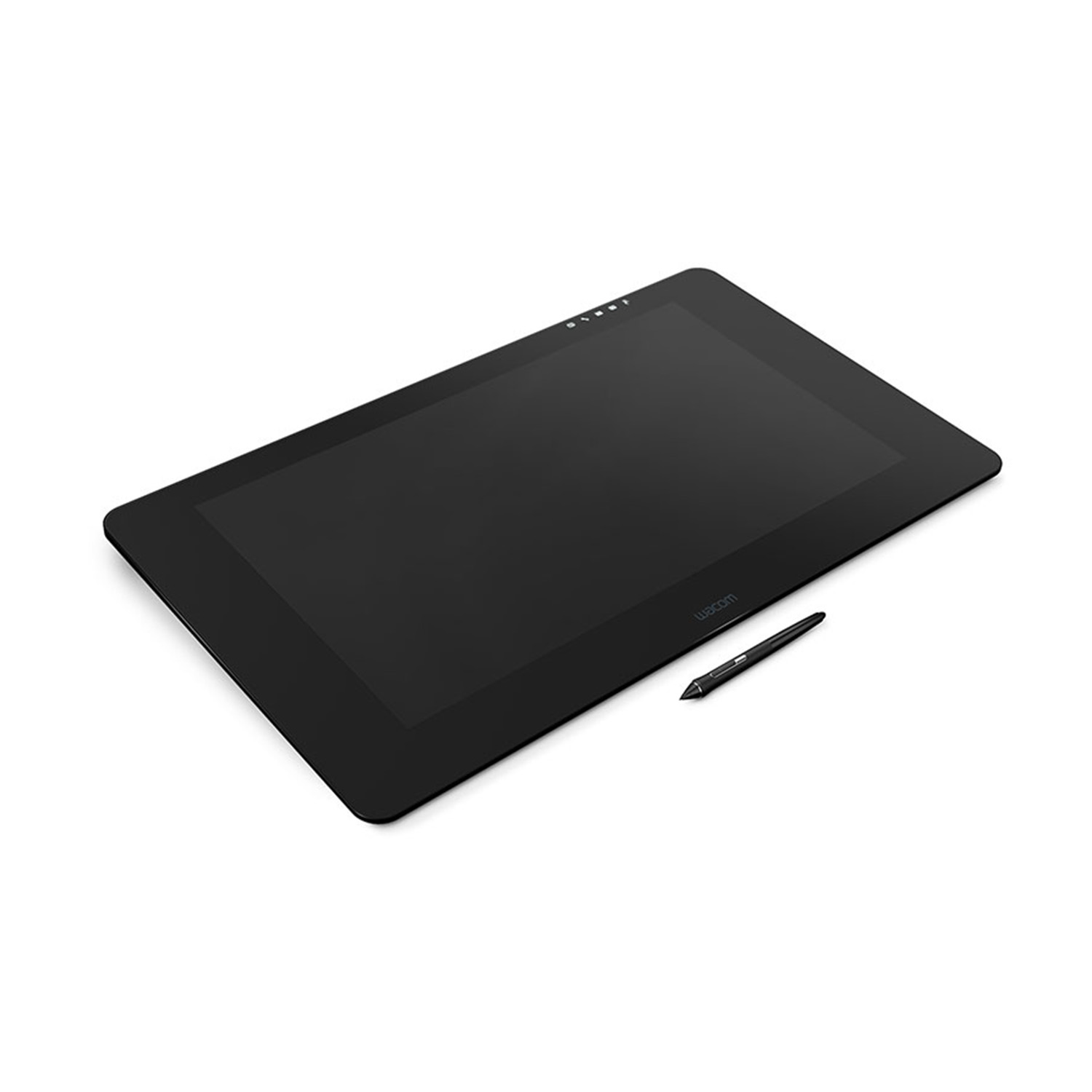

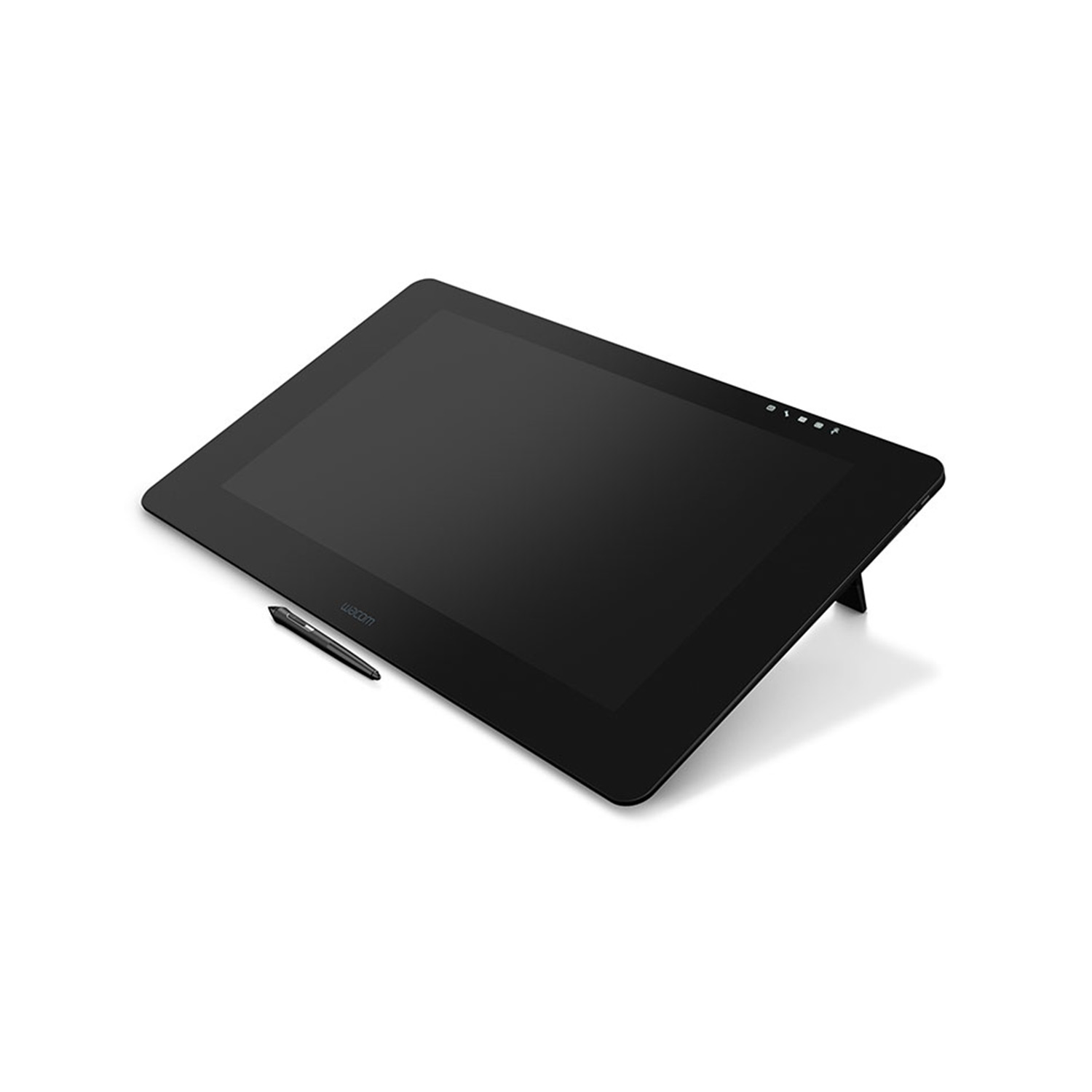

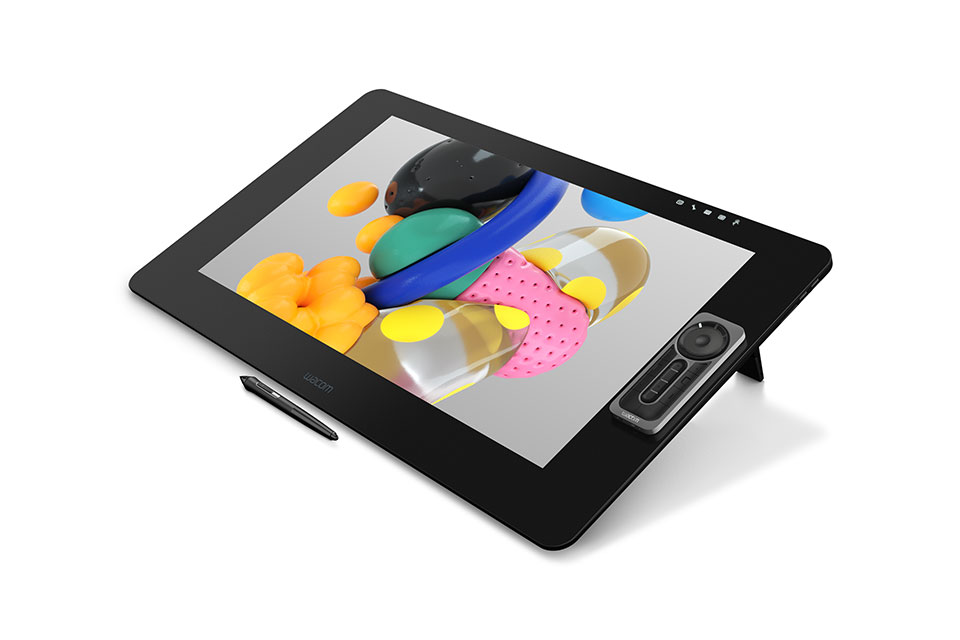

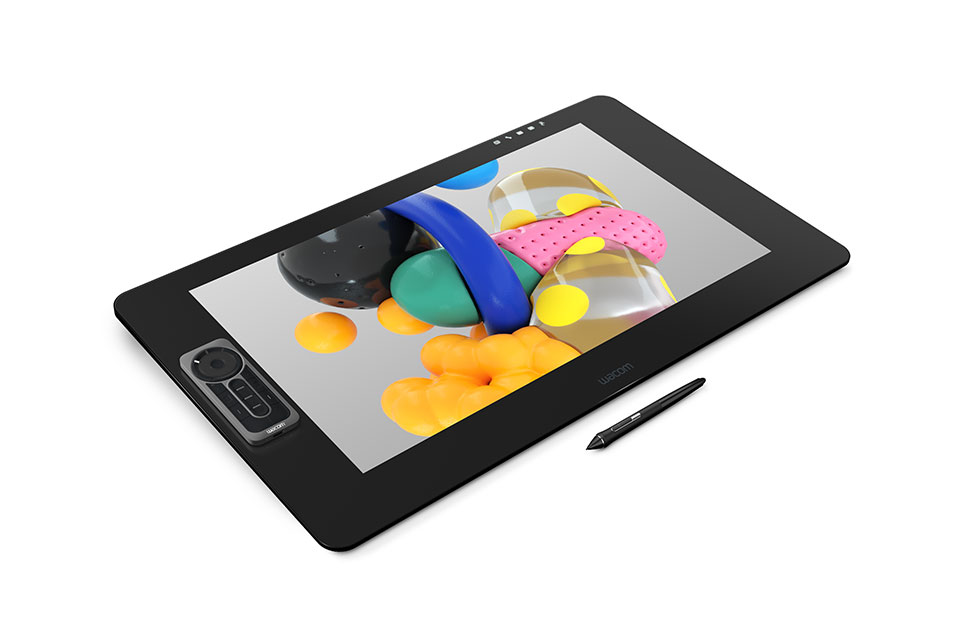

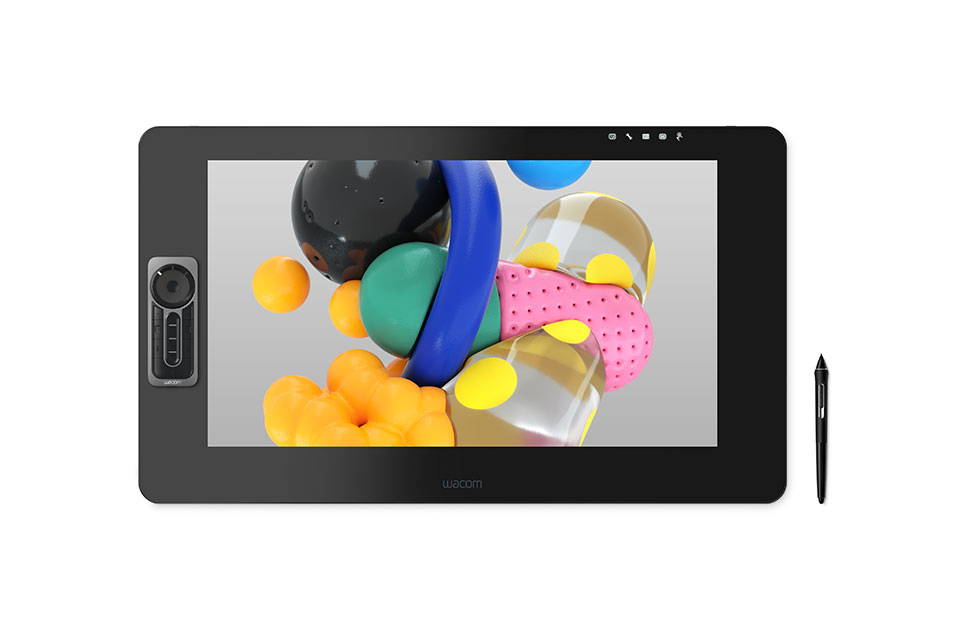

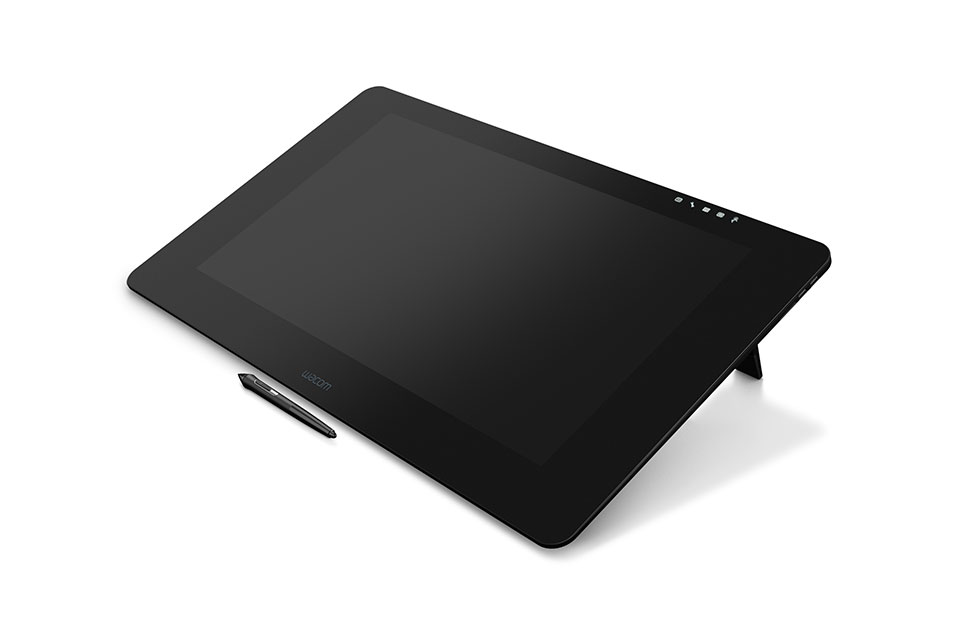

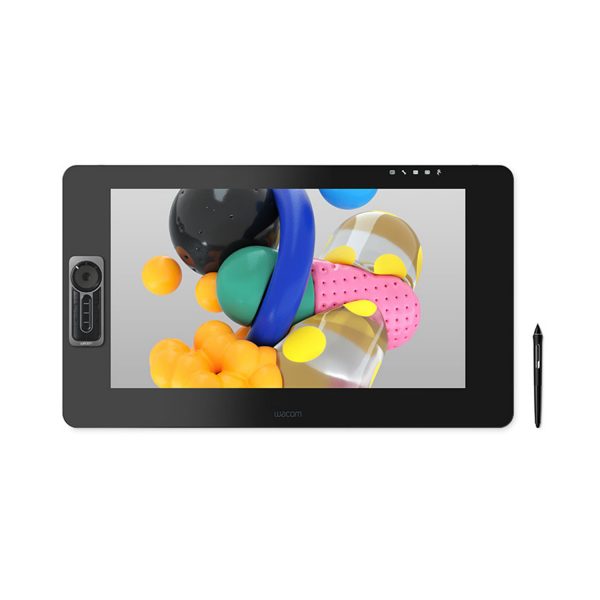

Wacom Cintiq Pro 24

  • Product typeCreative Pen Display 24
  • Model number2 models:
    DTK-2420 creative pen display
    DTH-2420 creative pen display touch
  • Display size677 x 394 x 47 mm (26.65 x 15.5 x 1.9 in)
  • Display weight7.2 kg (15.87 lbs) without optional stand
  • Screen Size (Measured Diagonally)59.94 cm / 23.6 in
  • TechnologyIPS UHD high brightness panel
  • Displayable colors (maximum)1.07 billion colors (10 bits color)
  • Aspect ratio16:9
  • Viewing Angle176° (88°/88°) H, (88°/88°) V
  • Contrast ratio1000:1
  • Brightness235 cd/m2 (min, duty 100%)
  • Response14 ms
  • Active area522 X 294 mm (20.55 X 11.57 in)
  • Color GamutAdobe RGB at CIE1931
    Coverage Ratio: 99%
  • Industry Standard Pre-sets6500° K whitepoint default
  • Graphics InputUSB type C port (supporting DisplayPort Alternate Mode) or DisplayPort or HDMI 2.0 port (required for 3840 x 2160 resolution)
  • Multi-touchYes – on touch model only (DTH-2420)
  • PenWacom Pro Pen 2
  • Pressure Levels8192, both pen tip and eraser
  • Tilt Range60 degrees
  • Tilt recognition±60 levels
  • TypePressure-sensitive, cordless, battery-free
  • SwitchesTip switch, 2 side switches, eraser
  • Nibs10 (6 standard, 4 felt) in pen stand
  • Pen Box/HolderYes – Pen Holder
  • Pen StandYes
  • GripLatex-free silicone rubber
  • TechnologyPatented electromagnetic resonance method
  • Resolution5080 lpi
  • ExpressKeys™17 customizable, application-specific on
    included ExpressKey™ Remote
  • Touch RingYes – on included ExpressKey Remote
  • Touch StripsNo
  • Rocker Ring And Home ButtonYes – on included ExpressKey Remote
  • Radial MenuYes
  • Precision ModeYes
  • Display toggleYes
  • Dedicated pan, scroll, zoom, brush sizeYes
  • ExpressKey™ Remote dimensions135 x 52 x 10 mm
    (5.3 x 2.0 x 0.4 in)
  • ExpressKey™ Remote continuous operationUp to 160 hours, if a key is pressed every 30 seconds
  • ExpressKey™ Remote charge timeUp to 2 hours
  • Cables includedUSB to USB cable (3m), DisplayPort to DisplayPort cable (3m), HDMI 2.0 to HDMI 2.0 cable (3m),USB-C to USB-C cable (1.8m), DisplayPort to Mini DisplayPort adapter, microUSB to USB cable (30 cm; for ExpressKey Remote)
  • PC and Mac Connection RequirementsUSB-C supporting DisplayPort Alternate Mode (DP Alt), or DisplayPort and standard USB-A, or HDMI port and standard USB-A port
  • Ports included4 x USB3 ports*
    1 x USB C port
    1 x HDMI2.0 port
    1 x DP port
    2 USB-A Ports (one for ExpressKey Remote dongle)
    *When connected to host computer over USB-C (including Cintiq Pro Engine), Cintiq Pro USB 3.0 ports run at USB 2.0 speeds to accommodate 4K video bandwidth over USB-C.
  • AudioAudio headset jack, built-in microphone
  • Power Supply Input100 to 240 VAC, 50/60HZ
  • Power Supply Output19.5V / 9.23A
  • Power ConsumptionPower ON mode (Max.): 100 W
    Power sleep mode: 2.0 W or lower
    Power OFF mode: 0.5 W or lower
  • BatteryRechargable Li-ion battery on include ExpressKey Remote
  • SecurityKensington® Lock Port (lock purchased separately)
  • System requirementsPC: Windows® 7 or later (latest service pack/build),
    Mac: OS X 10.11 or later (latest update); USB-C port with DisplayPort Alternate Mode (UHD), or Mini DisplayPort/DisplayPort (UHD) and USB-A, or HDMI 2.0 (UHD) and USB-A; Internet access for driver download.
  • What’s includedWacom Cintiq Pro 24 or Wacom Cintiq Pro 24 touch,
    Wacom Pro Pen 2 with 4-color pen ring set,
    ExpressKey™ Remote (with USB-A RF dongle and 30cm micro-USB to USB charger cable),
    Pen stand with 10 replacement nibs (6 standard, 4 felt) and nib removal tool,
    Pen holder,
    180W AC adaptor and 1.8m power cable, 1.8m USB-C to USB-C cable, 3m DisplayPort to DisplayPort cable, 3m HDMI2.0 to HDMI2.0 cable
    3m standard USB-A to USB-A cable,
    DisplayPort to Mini DisplayPort adapter,
    Quick Start Guide, Regulation sheet, Cleaning cloth
  • CertificationsVCCI Class B, FCC Part 15 Subpart B (class B) and C, CE, IC ICES-003 and 210, RCM, KCC, BSMI, C-tick, CB, CCC, GOST-R, China RoHS, Korean RoHS, EU RoHS
  • Additional accessoriesWacom Cintiq Pro Flex Arm,
    Wacom Ergo Stand,
    Wacom Cintiq Pro Engine,
    Wacom Color Manager,
    Wacom Pro Pen 3D,
    Wacom Keyboard,
    Replacement Wacom nibs (standard and flex) for Wacom Pro Pen 2,
    Wacom Pro Pen slim
    Additional previous generation pens (Classic, Airbrush, Art, Pro Pen),
    Replacement ExpressKey Remote,
    Replacement Wacom Pro Pen 2,
    Wacom Cintiq Pro VESA Mount
  • Limited warranty2 years in USA, Canada, Latin America and China(DTK-2421, DTH-2421)
    2 years in Europe, Africa, and Middle East
    1 year in Japan & Asia Pacific
  • Specifications are subject to change. Specification numbers like display size, active area and weight are approximate

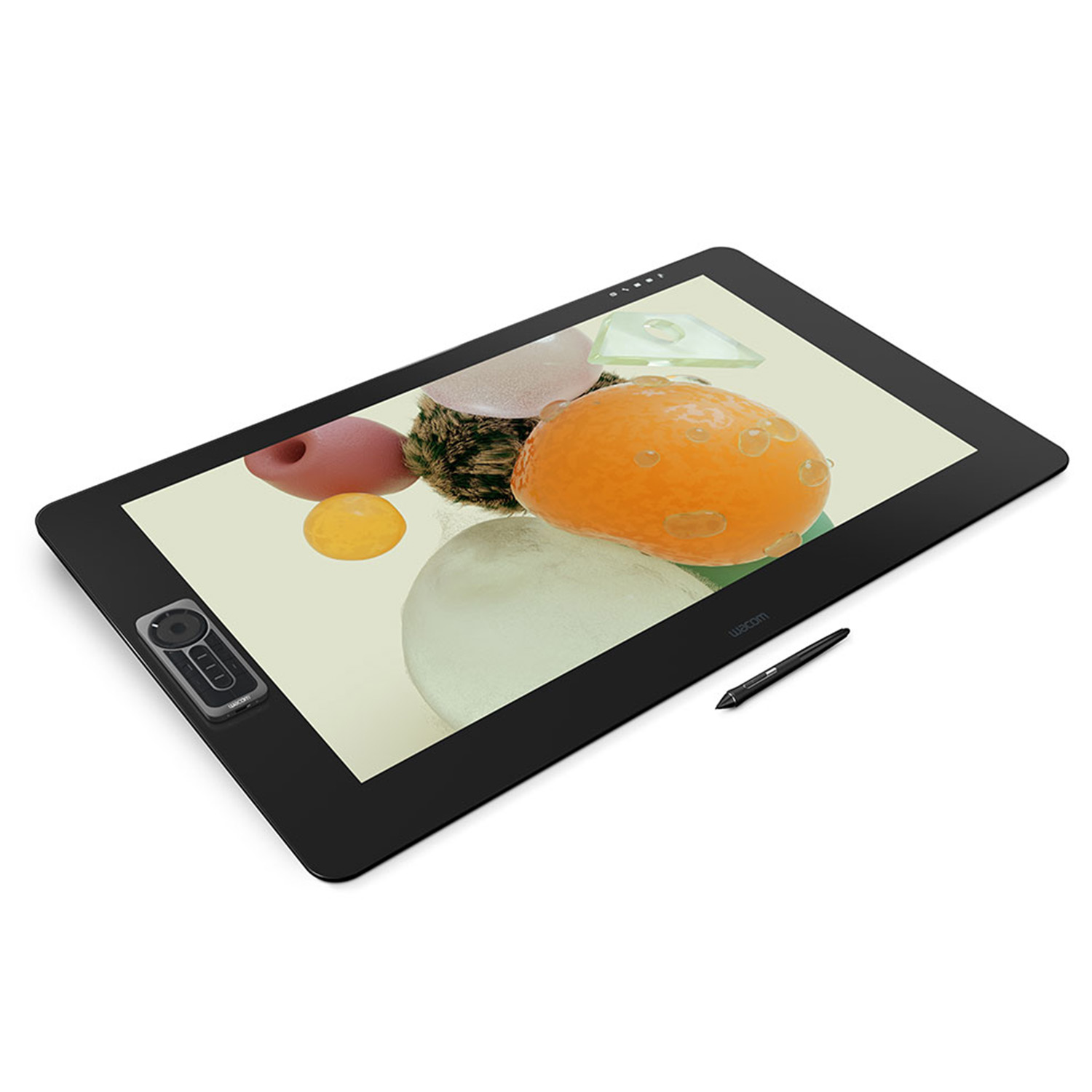

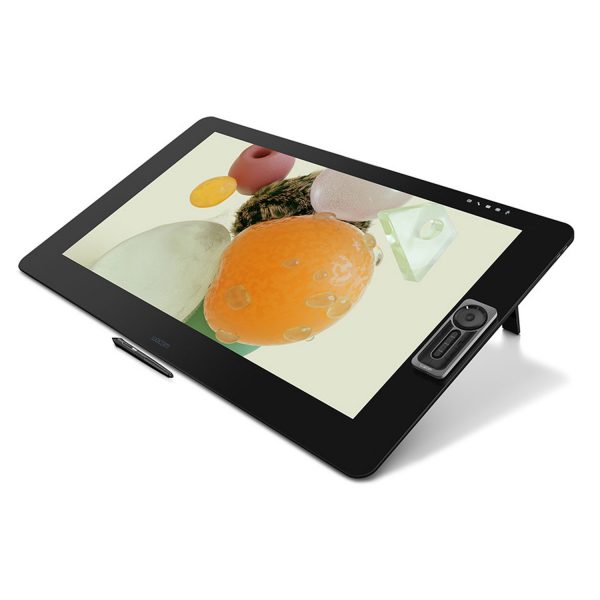

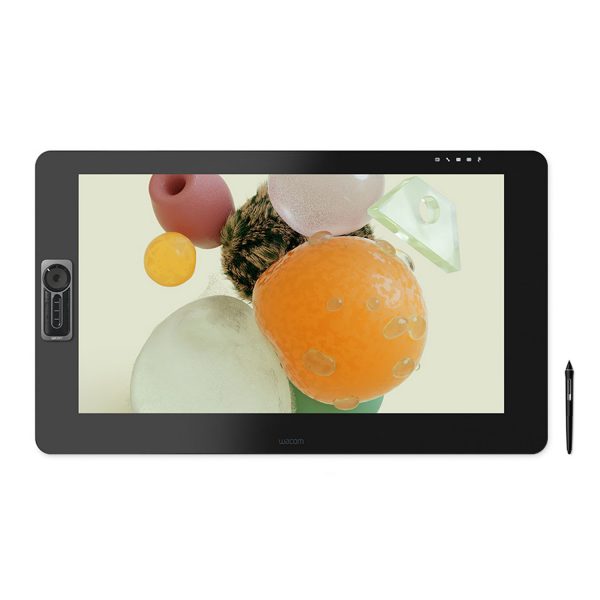

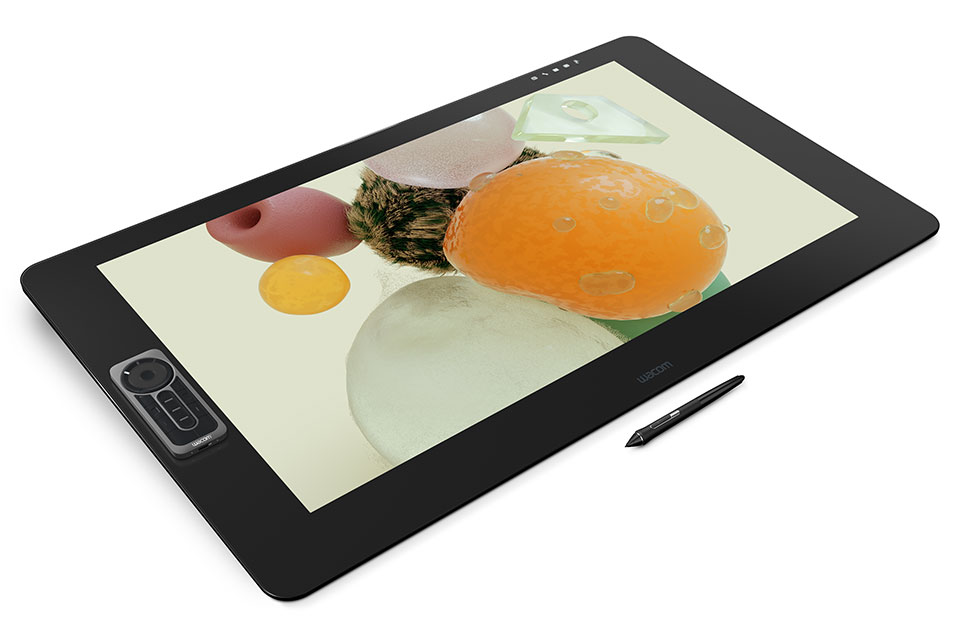

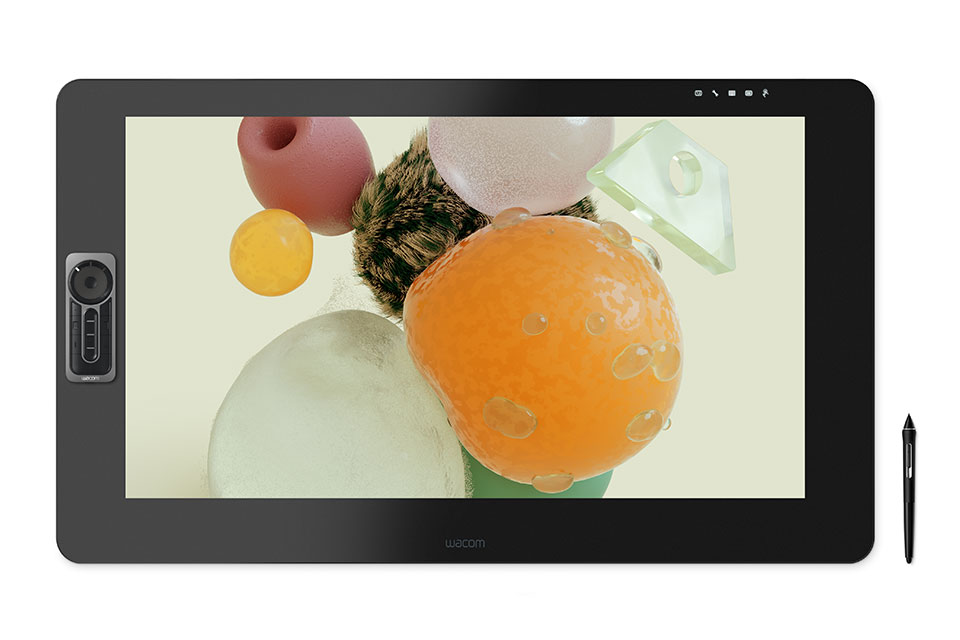

Wacom Cintiq Pro 32

  • Product typeCreative Pen Display 32
  • Model numberDTH-3220 creative pen display touch
  • Display size854 x 506 x 53.25 mm
    (33.62 x 19.92 x 2.1 in)
  • Display weight13 kg (28.66 lbs) without optional stand
  • Screen Size (Measured Diagonally)80 cm / 31.5 in
  • TechnologyIPS UHD high brightness panel
  • Displayable colors (maximum)1.07 billion colors (10 bits color)
  • Aspect ratio16:9
  • Viewing AngleRange Up to 64° from vertical (26° from horizontal, up to 90°)
  • Contrast ratio750:1 (min) / 1000:1 (Typ)
  • Brightness310cd/m2 (min, duty 100%)
  • Response8 ms
  • Active area697 X 392 mm (27.44 X 15.43 in)
  • Color GamutAdobe RGB at CIE1931
    Coverage Ratio: 98%
  • Industry Standard Pre-sets6500° K whitepoint default
  • Graphics InputUSB type C port (supporting DisplayPort Alternate Mode) or DisplayPort or HDMI 2.0 port (required for 3840 x 2160 resolution)
  • Multi-touchYes
  • PenWacom Pro Pen 2
  • Pressure Levels8192, both pen tip and eraser
  • Tilt Range60 degrees
  • Tilt recognition±60 levels
  • SwitchesTip switch, 2 side switches, eraser
  • Nibs10 (6 standard, 4 felt) in pen stand
  • Pen Box/HolderYes – Pen Holder
  • Pen StandYes
  • GripLatex-free silicone rubber
  • TechnologyPatented electromagnetic resonance method
  • Resolution5080 lpi
  • ExpressKeys™17 customizable, application-specific on
    included ExpressKey™ Remote
  • Touch RingYes – on included ExpressKey Remote
  • Touch StripsNo
  • Radial MenuYes
  • Precision ModeYes
  • Display toggleYes
  • Dedicated pan, scroll, zoom, brush sizeYes
  • ExpressKey™ Remote dimensions135 x 52 x 10 mm (5.3 x 2.0 x 0.4 in)
  • ExpressKey™ Remote continuous operationUp to 160 hours, if a key is pressed every 30 seconds
  • ExpressKey™ Remote charge timeUp to 2 hours
  • Cables includedUSB to USB cable (3m), DisplayPort to DisplayPort cable (3m), HDMI2.0 to HDMI2.0 cable (3m), USB-C to USB-C cable (1.8m), DisplayPort to Mini DisplayPort adapter, MicroUSB to USB cable (30 cm; for ExpressKey Remote), Power Cables (1.8m)
  • PC and Mac Connection RequirementsUSB-C supporting DisplayPort Alternate Mode (DPAM), or DisplayPort and standard USB-A, or HDMI port and standard USB-A port
  • Ports included4 x USB3 ports*
    1 x USB C port
    1 x USB3 port (Upstream port connected to computer)
    1 x HDMI2.0 port
    1 x DisplayPort
    1 USB-A Port ( For ExpressKey Remote dongle)
    *When connected to host computer over USB-C (including Cintiq Pro Engine), Cintiq Pro USB 3.0 ports run at USB 2.0 speeds to accommodate 4K input video bandwidth over USB-C.
  • AudioAudio headset jack, built-in microphone
  • Power Supply Input100 to 240 VAC, 50/60HZ
  • Power Supply Output19.5V / 9.23A
  • Power ConsumptionPower ON mode (Max.): 129 W
    Power sleep mode: 0.5 W or lower
    (Disconnect USB A or USB C cable)
    Power OFF mode: 0.5 W or lower
  • BatteryRechargable Li-ion battery on include ExpressKey Remote
  • SecurityKensington® Lock Port (lock purchased separately)
  • System requirementsPC: Windows® 7 or later (latest service pack/build),
    Mac: OS X 10.11 or later (latest update); USB-C port with DisplayPort Alternate Mode (UHD), or Mini DisplayPort/DisplayPort (UHD) and USB-A, or HDMI 2.0 (UHD) and USB-A; Internet access for driver download.
  • What’s includedWacom Cintiq Pro 32 touch
    Wacom Pro Pen 2 with 4-color pen ring set,
    ExpressKey™ Remote (with USB-A RF dongle and 30cm micro-USB to USB charger cable),
    Pen stand with 10 replacement nibs (6 standard, 4 felt) and nib removal tool,
    Pen holder,
    180W AC adaptor and 1.8m power cable,
    1.8m USB-C to USB-C cable ,
    3m DisplayPort to DisplayPort cable,
    3m HDMI2.0 to HDMI2.0 cable,
    3m standard USB-A to USB-A cable,
    DisplayPort to Mini DisplayPort adapter,
    Quick Start Guide,
    Regulation sheet,
    Cleaning cloth
  • CertificationsVCCI Class B, FCC Part 15 Subpart B (class B) and C, CE, IC ICES-003 and 210, RCM, KCC, BSMI, C-tick, CB, CCC, GOST-R, China RoHS, Korean RoHS, EU RoHS
  • Additional accessoriesWacom Cintiq Pro Flex Arm,Wacom Ergo Stand, Wacom Cintiq Pro Engine, Wacom Color Manager, Wacom Pro Pen 3D, Wacom Keyboard, Replacement Wacom nibs (standard and flex) for Wacom Pro Pen 2, Wacom Pro Pen slim, Additional previous generation pens (Classic, Airbrush, Art, Pro Pen), Replacement ExpressKey Remote, Replacement Wacom Pro Pen 2,
    Wacom Cintiq Pro VESA Mount
  • Limited warranty2 years in USA, Canada, Latin America and China (DTH-3221)
    2 years in Europe, Africa, and Middle East
    1 year in Japan & Asia Pacific
  • Specifications are subject to change. Specification numbers like display size, active area and weight are approximate
Wacom Cintiq Pro

16 Pen & Touch w/Wacom Link Plus, 24 Pen, 24 Pen & Touch, 32 Pen & Touch
